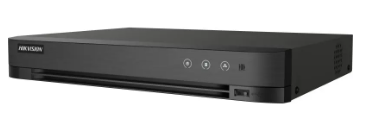

8-ch 5 MP 1U H.265 AcuSense DVR
8 channels and 1 HDD 1U AcuSense DVR
False alarm reduction by human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 16 network cameras can be connected.

https://www.hikvision.com/ph/products/Turbo-HD-Products/DVR/AcuSense-Series/iDS-7208HUHI-M1-S/

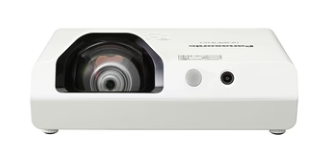

Projector type LCD projector
LCD panel
Panel size 15.0 mm (0.59 in) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix method
Number of pixels 1,024,000 (1280 x 800 pixels) x 3
Light source 230 W x 1 lamp
Light output*1 3,300 lm
Lamp replacement cycle*2 Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h
Filter replacement cycle Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h
Resolution 1280 x 800 pixels
Contrast ratio*1 20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Auto Power Save: Off, Daylight View: Off, Lamp control: Normal)
Screen size (diagonal) 1.27–2.54 m (50–100 in), 16:10 aspect ratio
Center-to-corner zone ratio*1 85 %
Lens Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm, throw ratio: 0.46:1 (Projection distance: 0.80 m [2.62 ft] for 80-inch image)
Keystone correction range Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual)
Installation Ceiling/desk, front/rear
Terminals
HDMI 1 IN/HDMI 2 IN HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM
(Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER 1 IN D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC]
COMPUTER 2 IN/1 OUT D-sub HD 15-pin (female) x 1 [RGB/YPBPR] (Input/output switching)
VIDEO IN Pin jack x 1
AUDIO IN 1 M3 (L,R) x 1
AUDIO IN 2 Pin jack x 2 (L,R)
AUDIO OUT M3 (L,R) x 1 (Variable)
LAN RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compatible)
USB USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3]/Power supply [DC 5 V/2 A])
Mini USB x 1 (Mini-USB connector for interactive function)
Power supply AC 100–240 V, 50/60 Hz
Power consumption 300 W
Cabinet materials Molded plastic
Built-in speaker 10 W monaural
Operation noise*1 Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB
Dimensions (W x H x D) 335 x 134.1*4 x 329 mm (13 3/16˝ x 5 9/32˝*4 x 12 15/16˝ )
Weight*5 Approx. 3.9 kg (8.6 lbs)
Operating environment Operating temperature*6: Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) at altitudes of 1,400–2,700 m (4,593–8,858 ft);
Operating humidity: 20–80 % (No condensation)
Applicable software
Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software, Presenter Light Software (for Windows®)*7, Wireless Projector for iOS/Android™*8, LightPen3 Software (for Windows/Mac), Whiteboard Software (for Windows)

Projector type LCD projector
LCD panel
Panel size 16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix method
Number of pixels 786,432 (1024 x 768 pixels) x 3
Light source 230 W x 1 lamp
Light output*1 3,800 lm
Lamp replacement cycle*2 Normal: 10,000 h/Eco: 20,000 h/Quiet: 10,000 h

Filter replacement cycle Normal: 5,000 h/Eco: 6,000 h/Quiet: 10,000 h
Resolution 1024 x 768 pixels
Contrast ratio*1 20,000:1 (All white/all black, Iris: On, Image mode: Dynamic, Auto Power Save: Off, Daylight View: Off, Lamp control: Normal)
Screen size (diagonal) 1.27–2.54 m (50–100 in), 4:3 aspect ratio
Center-to-corner zone ratio*1 85 %
Lens Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm, throw ratio: 0.46:1 (Projection distance: 0.75 m [2.46 ft] for 80-inch image)
Keystone correction range Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual)
Installation Ceiling/desk, front/rear
Terminals
HDMI 1 IN/HDMI 2 IN HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM
(Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER 1 IN D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC]
COMPUTER 2 IN/1 OUT D-sub HD 15-pin (female) x 1 [RGB/YPBPR] (Input/output switching)
VIDEO IN Pin jack x 1
AUDIO IN 1 M3 (L,R) x 1
AUDIO IN 2 Pin jack x 2 (L,R)
AUDIO OUT M3 (L,R) x 1 (Variable)
LAN RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compatible)
USB USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3]/Power supply [DC 5 V/2 A])
Mini USB —
Power supply AC 100–240 V, 50/60 Hz
Power consumption 300 W
Cabinet materials Molded plastic
Built-in speaker 10 W monaural
Operation noise*1 Normal: 38 dB, Eco: 35 dB, Quiet: 30 dB
Dimensions (W x H x D) 335 x 134.1*4 x 329 mm (13 3/16˝ x 5 9/32˝*4 x 12 15/16˝ )
Weight*5 Approx. 3.9 kg (8.6 lbs)
Operating environment Operating temperature*6: Normal use: 5–40 °C (41–104 °F) at altitudes less than 1,400 m (4,593 ft); 5–35 °C (41–95 °F) at altitudes of 1,400–2,700 m (4,593–8,858 ft);
Operating humidity: 20–80 % (No condensation)
Applicable software Multi Monitoring & Control Software, Early Warning Software, Logo Transfer Software, Presenter Light Software (for Windows®)*7, Wireless Projector for iOS/Android™*8

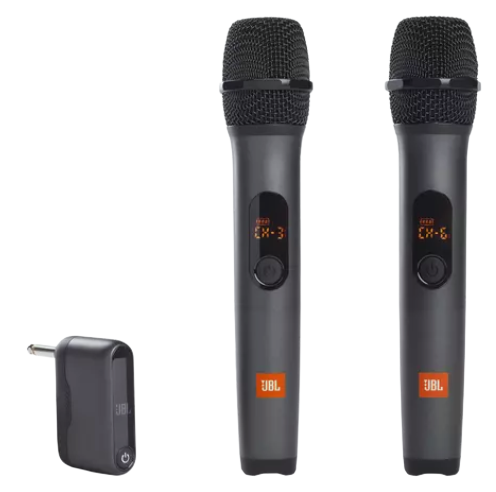

HARMAN JBL WIRELESS MIC AS2
• Distance between transmitter and receiver: >10m
• Polar pattern: Cardioid
• Frequency response: 65Hz–15kHz
• Signal-to-Noise(S/N) ratio: >60 dBA
• UHF frequency band: 470–960MHz (depends on SKU) (EU 657–662MHz)
• THD: <0.5%, typical
• Transmitter transmitting power: <10 mW, typical
• Receiver input: 1/4"" (6.3 mm) unbalanced
• Receiver maximum Output Level: -13dBV, typical
• Receiver rechargeable Battery: Lithium-ion
• Polymer 3.7WH (Equivalent to 3.7V, 1000mAh)
• Receiver charge time: <3.5 hours @5V/1A
• Receiver battery Playtime: Up to 6 hours
• Microphone battery: 4 x AA alkaline (included)

https://www.jbl.com.ph/loudspeakers/WIRELESS-MICROPHONE-.html

For Extra-Large Screens

Recommended screen size: 55” (140cm) - 100" (254cm)
Max load: 100kg (220lbs)
VESA® & non-VESA fixings: up to 900 x 600mm
Distance from wall: 30mm (1.2")


Designed to mount extra-large screens, the BT9901 is capable of supporting loads up to 100kg, making it ideal for mounting heavy duty touchscreens. The universal interface accommodates large mounting patterns up to 900mm x 600mm and features post installation screen alignment and simple 'hook-on' installation to make screen mounting quick and easy.

https://www.btechavmounts.com/product-range/products/bt9901

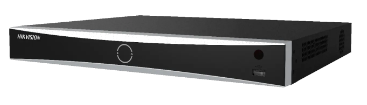

16-ch 1U K Series AcuSense 4K NVR
Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

https://www.hikvision.com/ph/products/IP-Products/Network-Video-Recorders/Pro-Series/ds-7616nxi-k2/

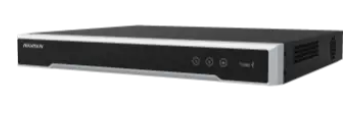

8-ch 1U 4K NVR
Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth


https://www.hikvision.com/en/products/IP-Products/Network-Video-Recorders/Pro-Series/ds-7608ni-q2/
